Quantified Paths

Overview

A quantified path is a variable-length path where the complete path or a part of it is repeated a specified number of times.

Quantified paths are useful when you:

• Don’t know the exact number of hops required between nodes.
• Need to capture relationships at varying depths.
• Want to simplify queries by compressing repetitive pattens.

Quantifiers

A quantifier is written as a postfix to either an edge pattern or a parenthesized path pattern to specify how many times the pattern should repeat.

Example Graph

CREATE GRAPH myGraph {
  NODE User ({name string}),
  NODE Device (),
  EDGE Owns ()-[{}]->(),
  EDGE Flows ()-[{packets int32}]->()
} PARTITION BY HASH(Crc32) SHARDS [1]

INSERT (jack:User {_id: "U01", name: "Jack"}),
       (mike:User {_id: "U02", name: "Mike"}),
       (c1:Device {_id: "Comp1"}),
       (c2:Device {_id: "Comp2"}),
       (c3:Device {_id: "Comp3"}),
       (c4:Device {_id: "Comp4"}),
       (jack)-[:Owns]->(c1),
       (mike)-[:Owns]->(c4),
       (c1)-[:Flows {packets: 20}]->(c2),
       (c1)-[:Flows {packets: 30}]->(c4),
       (c2)-[:Flows {packets: 34}]->(c3),
       (c2)-[:Flows {packets: 12}]->(c4),
       (c3)-[:Flows {packets: 74}]->(c4)

Building Quantified Paths

When writing a quantified path to its full form:

• Two consecutive node patterns are merged into a single node pattern with their filtering conditions combined using logical AND.
• Two consecutive edge patterns are implicitly connected by an empty node pattern.

Quantified Edge

Edge patterns can be directly followed by a quantifier, and both the full and abbreviated edge patterns are supported.

Quantified Entire Path

You can enclose the entire path pattern in parentheses () and append a quantifier.

When a quantifier is applied to an entire path pattern, a step count of 0 produces no result.

Quantified Partial Path

You can enclose part of a path pattern in parentheses () and append a quantifier for it.

Another example:

Examples

Lowerbound and Upperbound

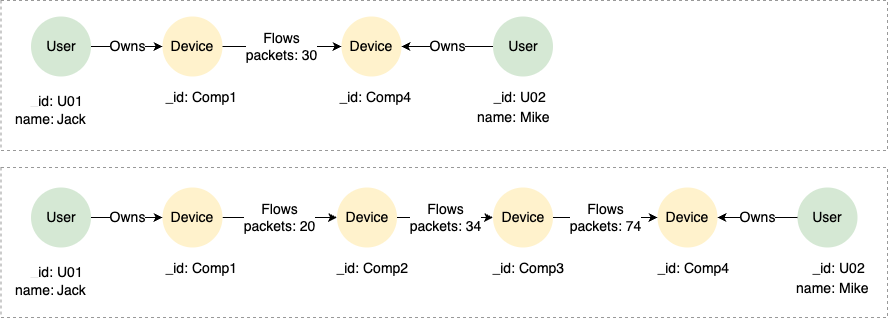

MATCH p = ({name: 'Jack'})->()-[f:Flows WHERE f.packets > 15]->{1,3}()<-({name: 'Mike'})
RETURN p

Result: p

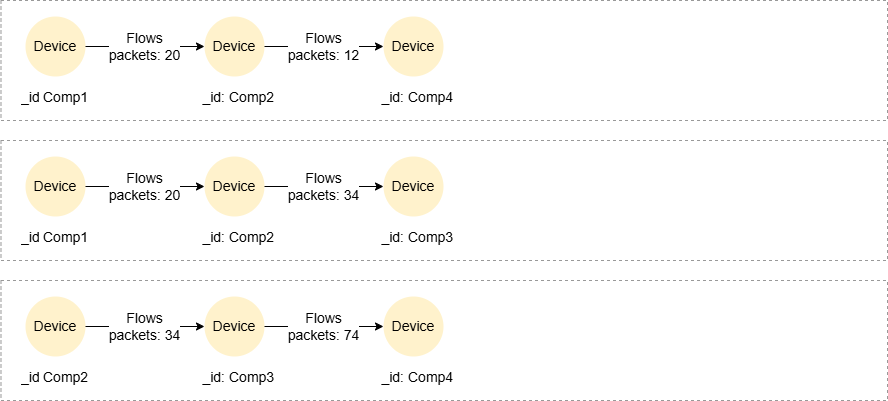

Fixed Length

MATCH p = ((:Device)->(:Device)){2}
RETURN p

Result: p

Fixed Lowerbound

MATCH ({_id: 'Comp1'})->{2,}(n)
RETURN COLLECT_LIST(n._id)

Result:

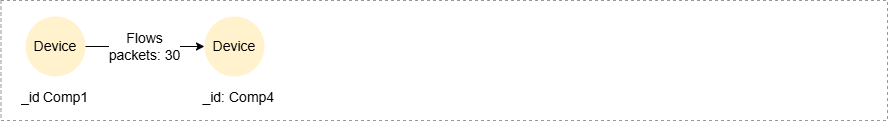

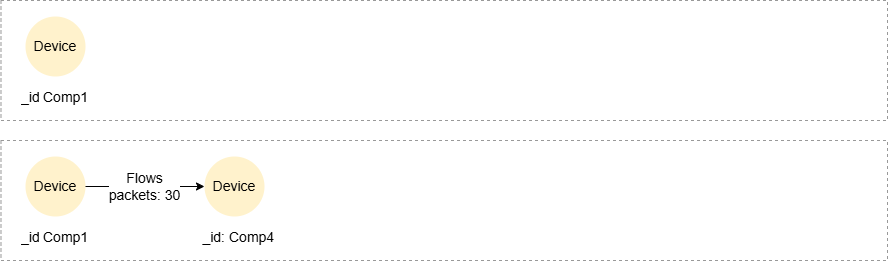

MATCH p = ({_id: 'Comp1'})-[f:Flows WHERE f.packets > 20]->*()
RETURN p

Result: p

MATCH p = ({_id: 'Comp1'})-[f:Flows WHERE f.packets > 20]->+()
RETURN p

Result: p

Fixed Upperbound

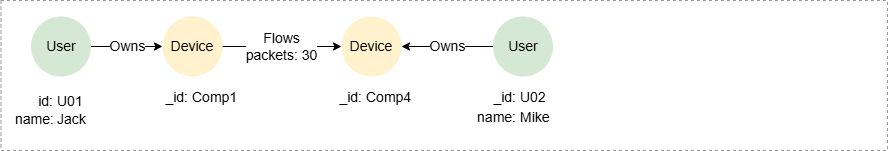

MATCH p = ({name: 'Jack'})->(()-[f:Flows WHERE f.packets > 15]->()){,2}<-({name: 'Mike'})
RETURN p

Result: p

Group Variables

Element variables declared within the repeatable part of a quantified path are bound to a list of nodes or edges, known as group variables or group list.

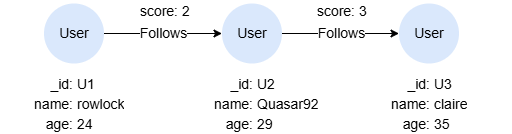

Example Graph

CREATE GRAPH myGraph {
  NODE User ({name string, age uint32}),
  EDGE Follows ()-[{score uint32}]->()
} PARTITION BY HASH(Crc32) SHARDS [1]

INSERT (rowlock:User {_id: "U1", name: "rowlock", age: 24}),
       (quasar92:User {_id: "U2", name: "Quasar92", age: 29}),
       (claire:User {_id: "U3", name: "claire", age: 35}),
       (rowlock)-[:Follows {score: 2}]->(quasar92),
       (quasar92)-[:Follows {score: 3}]->(claire)

Referencing Outside the Quantified Segment

Whenever a group variable is referenced outside the repeatable part of the quantified path where it is declared, it refers to a list of nodes or edges.

In this query, variables a and b represent lists of nodes encountered along the matched paths, rather than individual nodes:

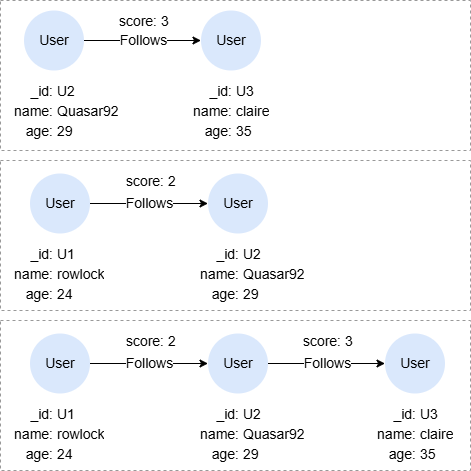

MATCH p = ((a)-[]->(b)){1,2}
RETURN p, a, b

Result:

p	a	b
	[(:User {_id:"U2", name:"Quasar92", age:29})]	[(:User {_id:"U3", name:"claire", age:35})]
	[(:User {_id:"U1", name:"rowlock", age:24})]	[(:User {_id:"U2", name:"Quasar92", age:29})]
	[(:User {_id:"U1", name:"rowlock", age:24}), (:User {_id:"U2", name:"Quasar92", age:29})]	[(:User {_id:"U2", name:"Quasar92", age:29}), (:User {_id:"U3", name:"claire", age:35})]

To aggregate the group variables, use the FOR statement to expand it into individual records:

MATCH path = ()-[edges]->{1,2}()
CALL (path, edges) {
  FOR edge IN edges
  RETURN sum(edge.score) AS scores
}
FILTER scores > 2
RETURN path, scores

Result:

p	scores
	3
	5

The following query throws syntax error since a and b are lists:

MATCH p = ((a)-[]->(b)){1,2}
WHERE a.age < b.age
RETURN p

Referencing Inside the Quantified Segment

A group variable has a singleton reference only when it is referenced within the repeatable part of the quantified path where it is declared.

In this query, a and b are treated as singletons that represent individual nodes. The condition a.age < b.age is evaluated for each pair of nodes a and b as the path is matched:

MATCH p = ((a)-[]->(b) WHERE a.age < b.age){1,2}
RETURN p

Result: p
