MATCH

Overview

The MATCH statement allows you to specify a graph pattern to search for in the graph. It is the fundamental statement for retrieving data from the graph database and binding them to variables for use in subsequent parts of the query.

Syntax
<match statement> ::=
  "MATCH" <graph pattern>
  [ "YIELD" <graph pattern yield item> [ { "," <graph pattern yield item> } ... ] ]

<graph pattern yield item> ::=
  <node variable reference> | <edge variable reference> | <path variable reference>

Example Graph

GQL
INSERT (rowlock:User {_id: 'U01', name: 'rowlock'}),
       (brainy:User {_id: 'U02', name: 'Brainy'}),
       (purplechalk:User {_id: 'U03', name: 'purplechalk'}),
       (mochaeach:User {_id: 'U04', name: 'mochaeach'}),
       (lionbower:User {_id: 'U05', name: 'lionbower'}),
       (c01:Club {_id: 'C01', since: 2005}),
       (c02:Club {_id: 'C02', since: 2005}),
       (rowlock)-[:Follows {createdOn: '2024-01-05'}]->(brainy),
       (mochaeach)-[:Follows {createdOn: '2024-02-10'}]->(brainy),
       (brainy)-[:Follows {createdOn: '2024-02-01'}]->(purplechalk),
       (purplechalk)-[:Follows {createdOn: '2024-05-03'}]->(lionbower),
       (brainy)-[:Joins {memberNo: 1}]->(c01),
       (lionbower)-[:Joins {memberNo: 2}]->(c01),
       (mochaeach)-[:Joins {memberNo: 9}]->(c02)

Matching All Nodes

GQL
MATCH (n)
RETURN n

Result:

JSON
[
  {"id": "U05", "labels": ["User"], "properties": {"name": "lionbower"}},
  {"id": "U04", "labels": ["User"], "properties": {"name": "mochaeach"}},
  {"id": "U03", "labels": ["User"], "properties": {"name": "purplechalk"}},
  {"id": "U02", "labels": ["User"], "properties": {"name": "Brainy"}},
  {"id": "U01", "labels": ["User"], "properties": {"name": "rowlock"}},
  {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}},
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}
]

Matching All Edges

GQL
MATCH ()-[e]->()
RETURN e

Result:

JSON
[
  {"id": "e:1", "label": "Follows", "fromNodeId": "U01", "toNodeId": "U02", "properties": {"createdOn": "2024-01-05"}},
  {"id": "e:2", "label": "Follows", "fromNodeId": "U02", "toNodeId": "U03", "properties": {"createdOn": "2024-02-01"}},
  {"id": "e:3", "label": "Follows", "fromNodeId": "U03", "toNodeId": "U05", "properties": {"createdOn": "2024-05-03"}},
  {"id": "e:4", "label": "Follows", "fromNodeId": "U04", "toNodeId": "U02", "properties": {"createdOn": "2024-02-10"}},
  {"id": "e:5", "label": "Joins", "fromNodeId": "U02", "toNodeId": "C01", "properties": {"memberNo": 1}},
  {"id": "e:6", "label": "Joins", "fromNodeId": "U05", "toNodeId": "C01", "properties": {"memberNo": 2}},
  {"id": "e:7", "label": "Joins", "fromNodeId": "U04", "toNodeId": "C02", "properties": {"memberNo": 9}}
]

Notice that if you don't specifiy the edge direction, either as outgoing or incoming, each edge in the graph will be returned twice, as two paths are considered distinct when their element sequences differ, i.e., (n1)-[e]->(n2) and (n2)<-[e]-(n1) are different paths.

GQL - Each edge will be returned twice
MATCH ()-[e]-()
RETURN e

Matching with Labels

Both node pattern and edge pattern support the label expression to specify labels.

Retrieve all Club nodes:

GQL
MATCH (n:Club)
RETURN n

Result:

JSON
[
  {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}},
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}
]

Retrieve all outgoing nodes from Brainy with Follows or Joins edges:

GQL
MATCH (:User {name: 'Brainy'})-[:Follows|Joins]->(n)
RETURN n

Result:

JSON
[
  {"id": "U03", "labels": ["User"], "properties": {"name": "purplechalk"}},
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}
]

Matching with Property Specification

Property specification can be included in node and edge patterns to apply joint equalities to filter nodes and edges with key-value pairs.

Retrieve Club nodes whose _id and since have specific values:

GQL
MATCH (n:Club {_id: 'C01', since: 2005})
RETURN n

Result:

JSON
[
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}
]

Retrieve the name of the member of club C01 whose memberNo is 1:

GQL
MATCH (:Club {_id: 'C01'})<-[:Joins {memberNo: 1}]-(n)
RETURN n.name

Result: n

n.name
Brainy

Matching with Abbreviated Edges

You can use abbreviated edge patterns when you do not need to filter edges or assign them to a variable. Even with the abbreviated form, you may still specify the direction of the edge when necessary.

Retrieve nodes connected with mochaeach with any outgoing edges:

GQL
MATCH (:User {name: 'mochaeach'})->(n)
RETURN n

Result:

JSON
[
  {"id": "U02", "labels": ["User"], "properties": {"name": "Brainy"}},
  {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}}
]

Matching Paths

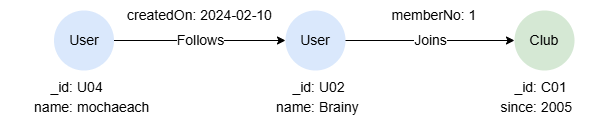

Retrieve users followed by mochaeach, and the clubs joined by those users:

GQL
MATCH p = (:User {name: 'mochaeach'})-[:Follows]->(:User)-[:Joins]->(:Club)
RETURN p

Result: p

Matching with WHERE Clauses

The WHERE clause can be used within an element pattern (node or edge pattern), a parenthesized path pattern, or immediately after a graph pattern in the MATCH statement to specify various search conditions.

Element Pattern WHERE Clause

Retrieve 1-step paths with outgoing Follows edges, where their createdOn values are greater than a specified date:

GQL
MATCH p = ()-[e:Follows WHERE e.createdOn > '2024-04-01']->()
RETURN p

Result: p

Parenthesized Path Pattern WHERE Clause

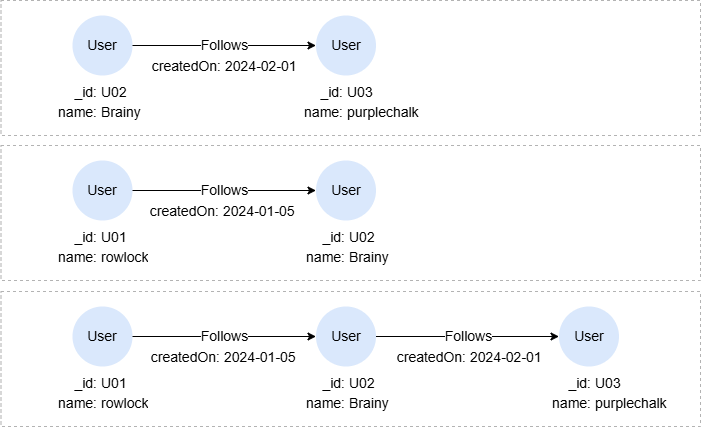

Retrieve one- or two-step paths containing outgoing Follows edges, where their createdOn values are smaller than a specified value:

GQL
MATCH p = (()-[e:Follows]->() WHERE e.createdOn < "2024-02-05"){1,2}
RETURN p

Result: p

Graph Pattern WHERE Clause

Retrieve members of club C01 whose memberNo is greater than 1:

GQL
MATCH (c:Club)<-[e:Joins]-(n)
WHERE c._id = 'C01' AND e.memberNo > 1
RETURN n

Result:

JSON
[
  {"id": "U05", "labels": ["User"], "properties": {"name": "lionbower"}}
]

Matching Quantified Paths

A quantified path is a variable-length path where the complete path or a part of it is repeated a specified number of times.

Retrieve distinct nodes related to lionbower in 1 to 3 hops:

GQL
MATCH (:User {name: 'lionbower'})-[]-{1,3}(n)
RETURN collect_list(DISTINCT n._id) AS IDs

Result:

IDs
["C01","U01","U02","U03","U04"]

Retrieve paths that begin with one- or two-step subpaths containing Follows edges, where their createdOn values are greater than a specified value, and these subpaths must connect to node C01:

GQL
MATCH p = (()-[e:Follows]->() WHERE e.createdOn > "2024-01-31"){1,2}()-({_id:"C01"})
RETURN p

Result: p

Matching Shortest Paths

A shortest paths between two nodes are the paths that has the fewest edges.

Retrieve all the shortest paths between lionbower and purplechalk within 5 hops:

GQL
MATCH p = ALL SHORTEST (n1:User)-[]-{,5}(n2:User)
WHERE n1.name = 'lionbower' AND n2.name = 'purplechalk'
RETURN p

Result: p

Matching Multiple Paths

When a MATCH statement contains multiple path patterns, each pattern is matched independently against the graph to produce its own result set. These result sets are then combined by performing an equi-join on the shared node or edge variables.

Retrieve users who joined club C02 and also follow Brainy:

GQL
MATCH (u)-[:Joins]->(:Club {_id: 'C02'}), (u)-[:Follows]->(:User {name: 'Brainy'})
RETURN u

Result:

JSON
[
  {"id": "U04", "labels": ["User"], "properties": {"name": "mochaeach"}}
]

The above query is equivalent to the following using two MATCHs:

GQL
MATCH (u)-[:Joins]->(:Club {_id: 'C02'})
MATCH (u)-[:Follows]->(:User {name: 'Brainy'})
RETURN u

If the path patterns share no common variables, the result sets are combined using a Cartesian product — a behavior that is usually undesired. For example,

GQL
MATCH (c:Club), (u:User)-[f:Follows WHERE f.createdOn > '2024-02-01']->()
RETURN c._id, u.name

Result:

c._id	u.name
C02	mochaeach
C02	purplechalk
C01	mochaeach
C01	purplechalk

MATCH YIELD

The YIELD clause can be used to select specific node, edge, or path variables from the MATCH statement, making them accessible for reference in subsequent parts of the query. Variables not selected with YIELD will no longer be available. If the YIELD clause is omitted, all variables are passed through by default.

This query only returns c, as n is not involved in YIELD:

GQL
MATCH (n:User)-[:Joins]->(c:Club)
YIELD c
RETURN *

Result:

JSON
[
  {"c": {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}},
  {"c": {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}}},
  {"c": {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}}
]

This query returns n1 and e, n2 is not included:

GQL
MATCH (n1:Club)
MATCH (n2:Club)<-[e:Joins WHERE e.memberNo < 3]-() YIELD e
RETURN *

Result:


[
  {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}},
  {"id": "C02", "labels": ["Club"], "properties": {"since": 2005}},
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}},
  {"id": "C01", "labels": ["Club"], "properties": {"since": 2005}}
]

This query throws syntax error since n2 is not selected in the YIELD clause, thus it cannot be accessed by the RETURN statement:

GQL - Syntax Error
MATCH (n1:User), (n2:Club)
YIELD n1
RETURN n1, n2
