Query autonet().src().dest().depth() can find and return paths from a group of initial-nodes to a group of terminal-nodes. It is a batch processing of A-B path query by paring an initial-node and a terminal-node for each query, and its parameter limit() is limiting the number of returns of each A-B pair of each subquery, but not that of all A-B pairs of each subquery.

Determined by the usage of parameter dest(), autonet query works in two modes:

a) Inter-group Networking (when setting dest())

• N nodes from one group pairing with M nodes from another group
• N * M times of A-B path query
• When the parameter limit(n) is carried and the value of n is not -1, maximum n * N * M paths will be found

b) Intra-group Networking (when omitting dest())

• N nodes from one group pairing with each other:
• N(N-1)/2 times of A-B path query
• When the parameter limit(n) is carried and the value of n is not -1, maximum n * N(N-1)/2 paths will be found

Syntax:

• Statement alias: supported (PATH)
• All parameters:

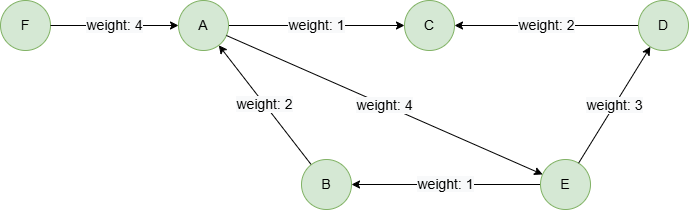

Sample graph: (to be used for the following examples)

create().edge_property(@default, "weight", int32)
insert().into(@default).nodes([{_id:"A", _uuid:1}, {_id:"B", _uuid:2}, {_id:"C", _uuid:3}, {_id:"D", _uuid:4}, {_id:"E", _uuid:5}, {_id:"F", _uuid:6}])
insert().into(@default).edges([{_uuid:1, _from_uuid:1, _to_uuid:3, weight:1}, {_uuid:2, _from_uuid:5, _to_uuid:2 , weight:1}, {_uuid:3, _from_uuid:1, _to_uuid:5 , weight:4}, {_uuid:4, _from_uuid:4, _to_uuid:3 , weight:2}, {_uuid:5, _from_uuid:5, _to_uuid:4 , weight:3}, {_uuid:6, _from_uuid:2, _to_uuid:1 , weight:2}, {_uuid:7, _from_uuid:6, _to_uuid:1 , weight:4}])

Inter-Group: Filter Depth

Example: Find 1~3-step paths from [A,B] to [D,E], carry all properties

autonet().src({_id in ["A","B"]}).dest({_id in ["D","E"]}).depth(:3) as p
return p{*}

A --3--> E --5--> D
A --1--> C <--4-- D
A <--6-- B <--2-- E --5--> D
A --3--> E
A --1--> C <--4-- D <--5-- E
A <--6-- B <--2-- E
B --6--> A --3--> E --5--> D
B --6--> A --1--> C <--4-- D
B <--2-- E --5--> D
B --6--> A --3--> E
B <--2-- E

Inter-Group: Non-weighted Shortest Path

Example: Find shortest paths from [A,B] to [D,E] within 3 steps, carry all properties

autonet().src({_id in ["A","B"]}).dest({_id in ["D","E"]}).depth(3)
  .shortest() as p
return p{*}

A --1--> C <--4-- D
A --3--> E --5--> D
A --3--> E
B <--2-- E --5--> D
B <--2-- E

Inter-Group: limit()

Example: Find 1~3-step paths from [A,B] to [D,E], return 1 path for each pair of nodes, carry all properties

autonet().src({_id in ["A","B"]}).dest({_id in ["D","E"]}).depth(:3).limit(1) as p
return p{*}

A <--6-- B <--2-- E --5--> D
A <--6-- B <--2-- E
B <--2-- E --5--> D
B <--2-- E

Intra-Group: Filter Depth

Example: Find 1~3-step paths among [A,B,C], carry all properties

autonet().src({_id in ["A","B","C"]}).depth(:3) as p
return p{*}

A --3--> E --2--> B
A <--6-- B
A --3--> E --5--> D --4--> C
A --1--> C
B --6--> A --1--> C
B <--2-- E --5--> D --4--> C
B <--2-- E <--3-- A --1--> C

Intra-Group: Non-weighted Shortest Path

Example: Find shortest paths among [A,B,C] within 3 steps, carry all properties

autonet().src({_id in ["A","B","C"]}).depth(3)
  .shortest() as p
return p{*}

A <--6-- B
A --1--> C
B --6--> A --1--> C

Intra-Group: limit()

Example: Find 1~3-step paths among [A,B,C], return 1 path for each pair of nodes, carry all properties

autonet().src({_id in ["A","B","C"]}).depth(:3).limit(1) as p
return p{*}

A <--6-- B
A --1--> C
B <--2-- E <--3-- A --1--> C
