Find Subgraphs

Overview

The subgraph([<path_template1>, <path_template2>, ...]) statement describes and searches subgraphs conform to a structure formed by multiple path template. These path templates typically intersect at nodes or edges, achieved through the reuse of aliases to establish shared elements within the subgraph.

Syntax

• Statement alias: N/A
• It is not permitted to declare aliases for the path templates involved, but aliases can be defined within the single-node templates n() and single-edge templates e().

Syntax
subgraph([
  <path_template1>,
  <path_template2>,
  ...
])

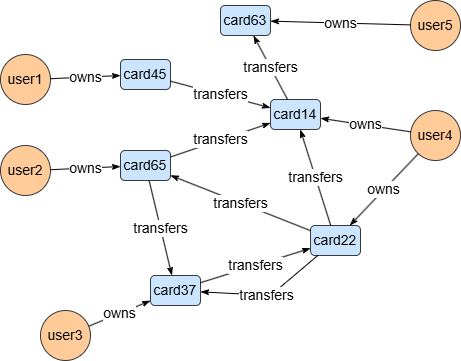

Example Graph

To create the graph, execute each of the following UQL queries sequentially in an empty graphset:

UQL
create().node_schema("user").node_schema("card").edge_schema("owns").edge_schema("transfers")
insert().into(@user).nodes([{_id:"user1"}, {_id:"user2"}, {_id:"user3"}, {_id:"user4"}, {_id:"user5"}])
insert().into(@card).nodes([{_id:"card14"}, {_id:"card22"}, {_id:"card37"}, {_id:"card45"}, {_id:"card63"}, {_id:"card65"}])
insert().into(@owns).edges([{_from:"user1", _to:"card45"}, {_from:"user2", _to:"card65"}, {_from:"user3", _to:"card37"}, {_from:"user4", _to:"card14"}, {_from:"user4", _to:"card22"}, {_from:"user5", _to:"card63"}])
insert().into(@transfers).edges([{_from:"card45", _to:"card14"}, {_from:"card65", _to:"card14"}, {_from:"card63", _to:"card14"}, {_from:"card65", _to:"card37"}, {_from:"card22", _to:"card65"}, {_from:"card37", _to:"card22"}, {_from:"card22", _to:"card37"}, {_from:"card22", _to:"card14"}])

Single Intersection

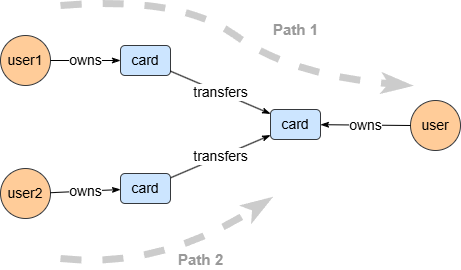

To find users who received direct transaction from both user1 and user2:

UQL
subgraph([
  n({_id == "user1"}).e().n({@card}).re({@transfers}).n({@card} as c).e().n({@user} as u),
  n({_id == "user2"}).e().n({@card}).re({@transfers}).n(c)
])
return u._id

Result:

Multiple Intersections

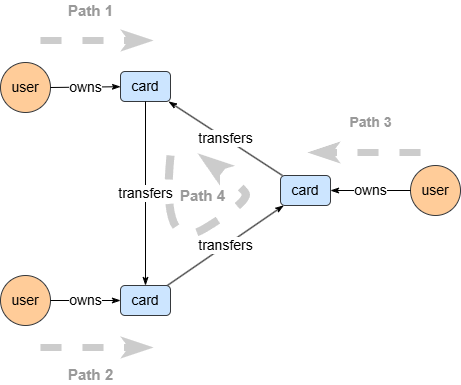

To find 3-step single-direction circular transaction paths between different accounts, return those account owners:

UQL
subgraph([
  n({@user} as u1).e().n({@card} as c1),
  n({@user && _id > u1._id} as u2).e().n({@card} as c2),
  n({@user && _id > u2._id} as u3).e().n({@card} as c3),
  n(c1).re().n(c2).re().n(c3).re().n(c1)
])
return table(u1._id, u2._id, u3._id)

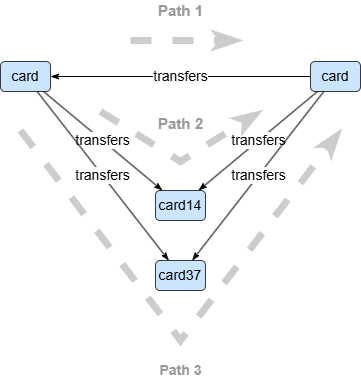

To find card pairs which both cards sent transactions to cards card14 and card37, and there are direct transactions between the card pair:

UQL
subgraph([
  n({@card} as c1).e().n({@card} as c2),
  n(c1 as c11).re().n({_id == "card14"}).le().n(c2 as c22),
  n(c11).re().n({_id == "card37"}).le().n(c22)
])
where c1._id > c2._id
return table(c11._id, c22._id)

Result:

If an alias needs to be referenced multiple times in different path templates within a subgraph(), it must be renamed after it is referenced the first time to keep it in scope. This ensures that the alias is available across multiple templates and avoids any potential conflicts or out-of-scope errors.
