Data Insertion and Deletion

This section introduces methods on a Connection object for inserting nodes and edges to the graph or deleting nodes and edges from the graphset.

Each example focuses solely on the method's usage. For a complete code example, please refer to the full example.

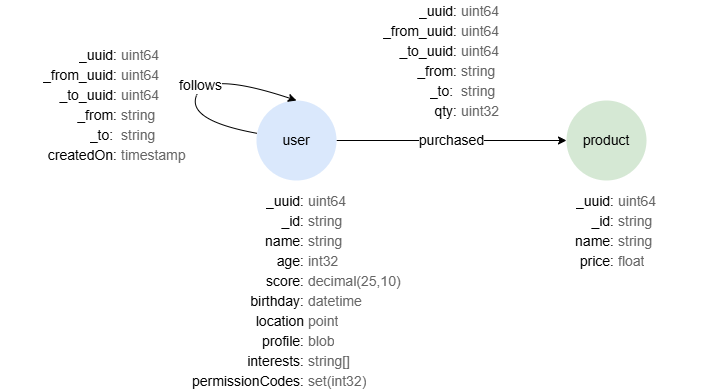

Example Graph Data Model

The examples below demonstrate how to insert or delete nodes or edges from a graphset with the following schema and property definitions:

Property Type Mapping

When inserting nodes or edges, you may need to specify property values of different types. The mapping between Ultipa property types and C#/Driver data types is as follows:

Insertion

InsertNodes()

Inserts new nodes of a schema to the current graph.

Parameters:

• string: Name of the schema.
• List<Node>: The list of Node objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• UqlResponse: Result of the request. The Response object contains an alias nodes that holds all the inserted nodes when InsertRequestConfig.Slient is set to false.

C#
InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

// Inserts two nodes into schema 'user' in graphset 'lcc', prints error code and information of the inserted nodes

var myPoint = new Point();
myPoint.X = 23.63M;
myPoint.Y = 104.25M;

Node node1 = new Node()
{
    Uuid = 1,
    Id = "U001",
    Values = new()
    {
        { "name", "Alice" },
        { "age", 18 },
        { "score", 65.32M },
        { "birthday", new DateTime(1993, 5, 4) },
        { "location", myPoint },
        { "profile", "abc" },
        {
            "interests",
            new List<string>() { "tennis", "violin" }
        },
        {
            "permissionCodes",
            new HashSet<int> { 2004, 3025, 1025 }
        },
    },
};

Node node2 = new Node()
{

    Uuid = 2,
    Id = "U002",
    Values = new() { { "name", "Bob" } },
};

List<Node> nodeList = new List<Node>();

nodeList.Add(node1);
nodeList.Add(node2);

var res = await ultipa.InsertNodes("user", nodeList, insertRequestConfig);
if (res.Status.ErrorCode == 0)
{
    Console.WriteLine("Insertion succeeds");
}

// There is no alias in Response if InsertRequestConfig.Slient is true

List<Node> insertedNodes = res?.Alias("nodes")?.AsNodes();
foreach (var node in insertedNodes)
{
    Console.WriteLine(JsonConvert.SerializeObject(node));
}

Output
Insertion succeeds
{"Uuid":1,"Id":"U001","Schema":"user","Values":{"name":"Alice","age":18,"score":65.3200000000,"birthday":"1993-05-04T00:00:00Z","location":{"X":23.630000,"Y":104.250000},"profile":"YWJj","interests":["tennis","violin"],"permissionCodes":null}}
{"Uuid":2,"Id":"U002","Schema":"user","Values":{"name":"Bob","age":null,"score":null,"birthday":null,"location":null,"profile":null,"interests":null,"permissionCodes":null}}

InsertEdges()

Inserts new edges of a schema to the current graph.

Parameters:

• string: Name of the schema.
• List<Edge>: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• UqlResponse: Result of the request. The Response object contains an alias edges that holds all the inserted edges when InsertRequestConfig.Slient is set to false.

C#
InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

// Inserts two edges into schema 'follows' in graphset 'lcc', prints error code and information of the inserted edges

List<Edge> edgeList = new List<Edge>();
Edge edge1 = new Edge()
{
    Uuid = 1,
    FromId = "U001",
    ToId = "U002",
    Values = new() { { "createdOn", new DateTime(2024, 5, 6) } },
};
Edge edge2 = new Edge()
{
    Uuid = 2,
    FromId = "U002",
    ToId = "U001",
    Values = new() { { "createdOn", new DateTime(2024, 5, 8) } },
};

edgeList.Add(edge1);
edgeList.Add(edge2);

var res = await ultipa.InsertEdges("follows", edgeList, insertRequestConfig);
if (res.Status.ErrorCode == 0)
{
    Console.WriteLine("Insertion succeeds");
}

// There is no alias in Response if InsertRequestConfig.Slient is true

List<Edge> insertedEdges = res?.Alias("edges")?.AsEdges();
foreach (var edge in insertedEdges)
{
    Console.WriteLine(JsonConvert.SerializeObject(edge));
}

Output
Insertion succeeds
{"Uuid":1,"FromUuid":1,"ToUuid":2,"Id":"","FromId":"U001","ToId":"U002","Schema":"follows","Values":{"createdOn":"2024-05-05T16:00:00Z"}}
{"Uuid":2,"FromUuid":2,"ToUuid":1,"Id":"","FromId":"U002","ToId":"U001","Schema":"follows","Values":{"createdOn":"2024-05-07T16:00:00Z"}}

InsertNodesBatchBySchema()

Inserts new nodes of a schema into the current graph through gRPC. The properties within the node values must be consistent with those declared in the schema structure.

Parameters:

• Schema: The target schema.
• List<Node>: The list of Node objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• InsertResponse: Result of the request.

C#
// Inserts two nodes into schema 'user' in graphset 'lcc' and prints error code
InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

List<Property> properties = new List<Property>();
Property property1 = new Property() { Name = "name", Type = PropertyType.String };
Property property2 = new Property() { Name = "age", Type = PropertyType.Int32 };
Property property3 = new Property() { Name = "score", Type = PropertyType.Decimal };
Property property4 = new Property() { Name = "birthday", Type = PropertyType.Datetime };
Property property5 = new Property() { Name = "location", Type = PropertyType.Point };
Property property6 = new Property() { Name = "profile", Type = PropertyType.Blob };
Property property7 = new Property()
{
    Name = "interests",
    Type = PropertyType.List,
    SubTypes = new PropertyType[] { PropertyType.String },
};
Property property8 = new Property()
{
    Name = "permissionCodes",
    Type = PropertyType.Set,
    SubTypes = new PropertyType[] { PropertyType.Int32 },
};
properties.Add(property1);
properties.Add(property2);
properties.Add(property3);
properties.Add(property4);
properties.Add(property5);
properties.Add(property6);
properties.Add(property7);
properties.Add(property8);

Schema schema = new Schema()
{
    Name = "user",
    Properties = properties,
    DbType = DBType.Dbnode,
};

var myPoint = new Point();
myPoint.X = 23.63M;
myPoint.Y = 104.25M;

Node node1 = new Node()
{
    Uuid = 1,
    Id = "U001",
    Values = new()
    {
        { "name", "Alice" },
        { "age", 18 },
        { "score", 65.32M },
        { "birthday", new DateTime(1993, 5, 4) },
        { "location", myPoint },
        { "profile", new byte[] { 123 } },
        {
            "interests",
            new List<string> { "tennis", "violin" }
        },
        {
            "permissionCodes",
            new HashSet<int> { 2004, 3025, 1025 }
        },
    },
};

Node node2 = new Node()
{
    Uuid = 2,
    Id = "U002",
    Values = new() { { "name", "Bob" } },
};

List<Node> nodeList = new List<Node>();
nodeList.Add(node1);
nodeList.Add(node2);

var res = ultipa.InsertNodesBatchBySchema(schema, nodeList, insertRequestConfig);
Console.WriteLine(res.Status.ErrorCode);
Console.WriteLine(JsonConvert.SerializeObject(res));

Output
Success
{"Status":{"ErrorCode":0,"Msg":"","ClusterInfo":null},"Statistic":{"NodeAffected":0,"EdgeAffected":0,"TotalCost":0,"EngineCost":0},"Data":{"Uuids":[1,2],"Ids":[],"ErrorItem":{}}}

InsertEdgesBatchBySchema()

Inserts new edges of a schema into the current graph through gRPC. The properties within the edge values must be consistent with those declared in the schema structure.

Parameters:

• Schema: The target schema.
• List<Edge>: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• InsertResponse: Result of the request.

C#
// Inserts two edges into schema 'follows' in graphset 'lcc' and prints error code

InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

List<Property> properties = new List<Property>();
Property property = new Property() { Name = "createdOn", Type = PropertyType.Datetime };
properties.Add(property);

Schema schema = new Schema() { Name = "follows", Properties = properties };

List<Edge> edgeList = new List<Edge>();
Edge edge1 = new Edge()
{
    Uuid = 1,
    FromId = "U001",
    ToId = "U002",
    Values = new() { { "createdOn", new DateTime(2024, 5, 6) } },
};
Edge edge2 = new Edge()
{
    Uuid = 2,
    FromId = "U002",
    ToId = "U001",
    Values = new() { { "createdOn", new DateTime(2024, 5, 8) } },
};
edgeList.Add(edge1);
edgeList.Add(edge2);

var res = ultipa.InsertEdgesBatchBySchema(schema, edgeList, insertRequestConfig);
Console.WriteLine(res.Status.ErrorCode);
Console.WriteLine(JsonConvert.SerializeObject(res.Data));

Output
Success
{"Uuids":[1,2],"Ids":[],"ErrorItem":{}}

InsertNodesBatchAuto()

Inserts new nodes of one or multiple schemas to the current graph through gRPC. The properties within node values must be consistent with those defined in the corresponding schema structure.

Parameters:

• List<Node>: The list of Node objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Dictionary<string,InsertResponse>: Result of the request.

C#
// Inserts two nodes into schema 'user' and one node into schema `product` in graphset 'lcc' and prints error code

InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

var myPoint = new Point();
myPoint.X = 23.63M;
myPoint.Y = 104.25M;

Node node1 = new Node()
{
    Schema = "user",
    Uuid = 1,
    Id = "U001",
    Values = new()
    {
        { "name", "Alice" },
        { "age", 18 },
        { "score", 65.32M },
        { "birthday", new DateTime(1993, 5, 4) },
        { "location", myPoint },
        { "profile", new byte[] { 123 } },
        {
            "interests",
            new List<string>() { "tennis", "violin" }
        },
        {
            "permissionCodes",
            new HashSet<int> { 2004, 3025, 1025 }
        },
    },
};

Node node2 = new Node()
{
    Schema = "user",
    Uuid = 2,
    Id = "U002",
    Values = new() { { "name", "Bob" } },
};

Node node3 = new Node()
{
    Schema = "product",
    Uuid = 3,
    Id = "P001",
    Values = new() { { "name", "Wireless Earbud" }, { "price", 93.2F } },
};

List<Node> nodeList = new List<Node>();

nodeList.Add(node1);
nodeList.Add(node2);
nodeList.Add(node3);

var res = await ultipa.InsertNodesBatchAuto(nodeList, insertRequestConfig);
Console.WriteLine(JsonConvert.SerializeObject(res));

Output
{"user":{"Status":{"ErrorCode":0,"Msg":"","ClusterInfo":null},"Statistic":{"NodeAffected":0,"EdgeAffected":0,"TotalCost":0,"EngineCost":0},"Data":{"Uuids":[1,2],"Ids":[],"ErrorItem":{}}},"product":{"Status":{"ErrorCode":0,"Msg":"","ClusterInfo":null},"Statistic":{"NodeAffected":0,"EdgeAffected":0,"TotalCost":0,"EngineCost":0},"Data":{"Uuids":[3],"Ids":[],"ErrorItem":{}}}}

InsertEdgesBatchAuto()

Inserts new edges of one or multiple schemas to the current graph through gRPC. The properties within edge values must be consistent with those defined in the corresponding schema structure.

Parameters:

• List<Edge>: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Dictionary<string,InsertResponse>: Result of the request.

C#
// Inserts two edges into schema 'follows' and one edge into schema 'purchased' in graphset 'lcc' and prints error code

InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

List<Edge> edgeList = new List<Edge>();
Edge edge1 = new Edge()
{
    Schema = "follows",
    Uuid = 1,
    FromId = "U001",
    ToId = "U002",
    Values = new() { { "createdOn", new DateTime(2024, 5, 6) } },
};
Edge edge2 = new Edge()
{
    Schema = "follows",
    Uuid = 2,
    FromId = "U002",
    ToId = "U001",
    Values = new() { { "createdOn", new DateTime(2024, 5, 8) } },
};
Edge edge3 = new Edge()
{
    Schema = "purchased",
    Uuid = 3,
    FromId = "U002",
    ToId = "P001",
    Values = new() { { "qty", 1u } },
};

edgeList.Add(edge1);
edgeList.Add(edge2);
edgeList.Add(edge3);

var res = await ultipa.InsertEdgesBatchAuto(edgeList, insertRequestConfig);
Console.WriteLine(JsonConvert.SerializeObject(res));

Output
{"follows":{"Status":{"ErrorCode":0,"Msg":"insert edges succeed!","ClusterInfo":null},"Statistic":{"NodeAffected":0,"EdgeAffected":0,"TotalCost":0,"EngineCost":0},"Data":{"Uuids":[1,2],"Ids":[],"ErrorItem":{}}},"purchased":{"Status":{"ErrorCode":0,"Msg":"insert edges succeed!","ClusterInfo":null},"Statistic":{"NodeAffected":0,"EdgeAffected":0,"TotalCost":0,"EngineCost":0},"Data":{"Uuids":[3],"Ids":[],"ErrorItem":{}}}}

Deletion

DeleteNodes()

Deletes nodes that meet the given conditions from the current graph. It's important to note that deleting a node leads to the removal of all edges that are connected to it.

Parameters:

• string: The filtering condition to specify the nodes to delete.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• <UqlResponse, List<Node>?>: Result of the request. The Response object contains an alias nodes that holds all the deleted nodes when InsertRequestConfig.Slient is set to false.

C#
// Deletes one @user nodes whose name is 'Alice' from graphset 'lcc' and prints error code
// All edges attached to the deleted node are deleted as well

InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

var res = await ultipa.DeleteNodes("@user.name == 'Alice'", insertRequestConfig);
Console.WriteLine(res.Item1.Status.ErrorCode);
Console.WriteLine(JsonConvert.SerializeObject(res.Item2));

Output
Success
[{"Uuid":1,"Id":"U001","Schema":"user","Values":{}}]

DeleteEdges()

Deletes edges that meet the given conditions from the current graph.

Parameters:

• string: The filtering condition to specify the edges to delete.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• <UqlResponse, List<Edge>?>: Result of the request. The Response object contains an alias edges that holds all the deleted edges when InsertRequestConfig.Slient is set to false.

C#
// Deletes all @purchased edges from graphset 'lcc' and prints error code

InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
{
    InsertType = InsertType.Normal,
    Graph = "lcc",
    Silent = false,
};

var res = await ultipa.DeleteEdges("@purchased", insertRequestConfig);
Console.WriteLine(res.Item1.Status.ErrorCode);
Console.WriteLine(JsonConvert.SerializeObject(res.Item2));

Output
Success
[{"Uuid":3,"FromUuid":2,"ToUuid":3,"Id":"","FromId":"U002","ToId":"P001","Schema":"purchased","Values":{}}]

Full Example

C#
using System.Data;
using System.Security.Cryptography.X509Certificates;
using System.Xml.Linq;
using Google.Protobuf.WellKnownTypes;
using Microsoft.Extensions.Logging;
using Newtonsoft.Json;
using UltipaService;
using UltipaSharp;
using UltipaSharp.api;
using UltipaSharp.configuration;
using UltipaSharp.connection;
using UltipaSharp.exceptions;
using UltipaSharp.structs;
using UltipaSharp.utils;
using Logger = UltipaSharp.utils.Logger;
using Property = UltipaSharp.structs.Property;
using Schema = UltipaSharp.structs.Schema;

class Program
{
    static async Task Main(string[] args)
    {
        // Connection configurations
        // URI example: Hosts=new[]{"mqj4zouys.us-east-1.cloud.ultipa.com:60010"}
        var myconfig = new UltipaConfig()
        {
            Hosts = new[] { "192.168.1.85:60061", "192.168.1.86:60061", "192.168.1.87:60061" },
            Username = "***",
            Password = "***",
        };

        // Establishes connection to the database
        var ultipa = new Ultipa(myconfig);
        var isSuccess = ultipa.Test();
        Console.WriteLine(isSuccess);

        // Insert Request configurations
        InsertRequestConfig insertRequestConfig = new InsertRequestConfig()
        {
            InsertType = InsertType.Normal,
            Graph = "lcc",
            Silent = false,
        };

       // Inserts two nodes into schema 'user' and one node into schema `product` in graphset 'lcc', prints error code and the insert reply
       var myPoint = new Point();
       myPoint.X = 23.63M;
       myPoint.Y = 104.25M;

       Node node1 = new Node()
       {
           Schema = "user",
           Uuid = 1,
           Id = "U001",
           Values = new()
           {
               { "name", "Alice" },
               { "age", 18 },
               { "score", 65.32M },
               { "birthday", new DateTime(1993, 5, 4) },
               { "location", myPoint },
               { "profile", new byte[] { 123 } },
               {
                   "interests",
                   new List<string>() { "tennis", "violin" }
               },
               {
                   "permissionCodes",
                   new HashSet<int> { 2004, 3025, 1025 }
               },
           },
       };

       Node node2 = new Node()
       {
           Schema = "user",
           Uuid = 2,
           Id = "U002",
           Values = new() { { "name", "Bob" } },
       };

       Node node3 = new Node()
       {
           Schema = "product",
           Uuid = 3,
           Id = "P001",
           Values = new() { { "name", "Wireless Earbud" }, { "price", 93.2F } },
       };

       List<Node> nodeList = new List<Node>();

       nodeList.Add(node1);
       nodeList.Add(node2);
       nodeList.Add(node3);

       var nodeInsert = await ultipa.InsertNodesBatchAuto(nodeList, insertRequestConfig);
       Console.WriteLine(JsonConvert.SerializeObject(nodeInsert));

       // Inserts two edges into schema 'follows' and one edge into schema 'purchased' in graphset 'lcc', prints error code and the insert reply

       List<Edge> edgeList = new List<Edge>();
       Edge edge1 = new Edge()
       {
           Schema = "follows",
           Uuid = 1,
           FromId = "U001",
           ToId = "U002",
           Values = new() { { "createdOn", new DateTime(2024, 5, 6) } },
       };
       Edge edge2 = new Edge()
       {
           Schema = "follows",
           Uuid = 2,
           FromId = "U002",
           ToId = "U001",
           Values = new() { { "createdOn", new DateTime(2024, 5, 8) } },
       };
       Edge edge3 = new Edge()
       {
           Schema = "purchased",
           Uuid = 3,
           FromId = "U002",
           ToId = "P001",
           Values = new() { { "qty", 1u } },
       };

       edgeList.Add(edge1);
       edgeList.Add(edge2);
       edgeList.Add(edge3);

       var edgeInsert = await ultipa.InsertEdgesBatchAuto(edgeList, insertRequestConfig);
       Console.WriteLine(JsonConvert.SerializeObject(edgeInsert));
   }
}
