Data Insertion and Deletion

This section introduces methods on a Connection object for inserting nodes and edges to the graph or deleting nodes and edges from the graphset.

Each example focuses solely on the method's usage. For a complete code example, please refer to the full example.

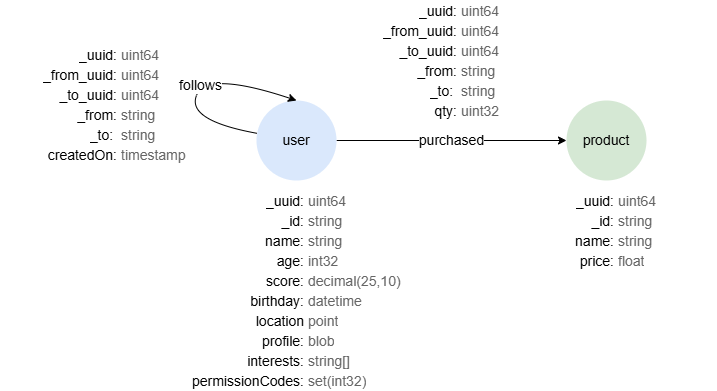

Example Graph Data Model

The examples below demonstrate how to insert or delete nodes or edges from a graphset with the following schema and property definitions:

Property Type Mapping

When inserting nodes or edges, you may need to specify property values of different types. The mapping between Ultipa property types and Node.js/Driver data types is as follows:

Insertion

insertNodes()

Inserts new nodes of a schema to the current graph.

Parameters:

• string: Name of the schema.
• Node[]: The list of Node objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. The Response object contains an alias nodes that holds all the inserted nodes when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two nodes into schema 'user' in graphset 'lcc', prints error code and information of the inserted nodes

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let resp = await conn.insertNodes(
  "user",
  [
    {
      _id: "U001",
      _uuid: 1,
      name: "Alice",
      age: 18,
      score: "65.32",
      birthday: "1993-5-4",
      location: `POINT(23.63 104)`,
      profile: "abc",
      interests: ["tennis", "violin"],
      permissionCodes: [2004, 3025, 1025],
    },
    { _id: "U002", _uuid: 2, name: "Bob" },
  ],
  insertRequestConfig
);
console.log(resp.status.code_desc);
console.log(resp.data);

Output
SUCCESS
[
  Node { id: 'U001', uuid: '1', schema: 'user', values: {} },
  Node { id: 'U002', uuid: '2', schema: 'user', values: {} }
]

insertEdges()

Inserts new edges of a schema to the current graph.

Parameters:

• string: Name of the schema.
• Edge[]: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. The Response object contains an alias edges that holds all the inserted edges when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two edges into schema 'follows' in graphset 'lcc', prints error code and information of the inserted edges

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: true,
  graphSetName: "lcc",
  useMaster: true,
};

let resp = await conn.insertEdges(
  "follows",
  [
    {
      _uuid: 1,
      _from: "U001",
      _to: "U002",
      createdOn: "2024-5-6",
    },
    {
      _uuid: 2,
      _from: "U002",
      _to: "U001",
      createdOn: "2024-5-8",
    },
  ],
  insertRequestConfig
);
console.log(resp.status.code_desc);
console.log(resp.data);

Output
SUCCESS
[
  Edge {
    from: 'U001',
    to: 'U002',
    uuid: '1',
    from_uuid: '1',
    to_uuid: '2',
    schema: 'follows',
    values: {}
  },
  Edge {
    from: 'U002',
    to: 'U001',
    uuid: '2',
    from_uuid: '2',
    to_uuid: '1',
    schema: 'follows',
    values: {}
  }
]

insertNodesBatchBySchema()

Inserts new nodes of a schema into the current graph through gRPC. The properties within the node values must be consistent with those declared in the schema structure.

Parameters:

• Schema: The target schema.
• Node[]: The list of Node objects to be inserted.
• InsertRequestConfig: Configuration settings for the request.

Returns:

• Response: Result of the request. Response.InsertNodesReply contains the insertion report when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two nodes into schema 'user' in graphset 'lcc' and prints error code

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let proInfo: ULTIPA.Property[] = [];
let pro1: ULTIPA.Property = {
  name: "name",
  type: ULTIPA.PropertyType.string,
};
let pro2: ULTIPA.Property = {
  name: "age",
  type: ULTIPA.PropertyType.int32,
};
let pro3: ULTIPA.Property = {
  name: "score",
  type: ULTIPA.PropertyType.decimal,
};
let pro4: ULTIPA.Property = {
  name: "birthday",
  type: ULTIPA.PropertyType.datetime,
};
let pro5: ULTIPA.Property = {
  name: "location",
  type: ULTIPA.PropertyType.point,
};
let pro6: ULTIPA.Property = {
  name: "profile",
  type: ULTIPA.PropertyType.blob,
};
let pro7: ULTIPA.Property = {
  name: "interests",
  type: ULTIPA.PropertyType.list,
};
let pro8: ULTIPA.Property = {
  name: "permissionCodes",
  type: ULTIPA.PropertyType.set,
};

const pros = [pro1, pro2, pro3, pro4, pro5, pro6, pro7, pro8];
for (const item of pros) {
  proInfo.push(item);
}

let nodeInfo1 = new ULTIPA.Node();
nodeInfo1.id = "U001";
nodeInfo1.uuid = "1";
nodeInfo1.set("name", "Alice");
nodeInfo1.set("age", 18);
nodeInfo1.set("score", "65.32");
nodeInfo1.set("birthday", "1993-5-4");
nodeInfo1.set("location", `POINT(23.63 104)`);
nodeInfo1.set("profile", "abc");
nodeInfo1.set("interests", ["tennis", "violin"]);
nodeInfo1.set("permissionCodes", [2004, 3025, 1025]);
let node1: ULTIPA.Node[] = [];
node1.push(nodeInfo1);

let insert1 = await conn.insertNodesBatchBySchema(
  { dbType: ULTIPA.DBType.DBNODE, name: "user", properties: proInfo },
  node1,
  insertRequestConfig
);
console.log(insert1.status.code_desc);

let nodeInfo2 = new ULTIPA.Node();
nodeInfo2.id = "U002";
nodeInfo2.uuid = "2";
nodeInfo2.set("name", "Bob");
nodeInfo2.set("age", null);
nodeInfo2.set("score", null);
nodeInfo2.set("birthday", null);
nodeInfo2.set("location", null);
nodeInfo2.set("profile", null);
nodeInfo2.set("interests", null);
nodeInfo2.set("permissionCodes", null);
let node2: ULTIPA.Node[] = [];
node2.push(nodeInfo2);

let insert2 = await conn.insertNodesBatchBySchema(
  { dbType: ULTIPA.DBType.DBNODE, name: "user", properties: proInfo },
  node2,
  insertRequestConfig
);
console.log(insert2.status.code_desc);

Output
SUCCESS
SUCCESS

insertEdgesBatchBySchema()

Inserts new edges of a schema into the current graph through gRPC. The properties within the edge values must be consistent with those declared in the schema structure.

Parameters:

• Schema: The target schema.
• Edge[]: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. Response.InsertNodesReply contains the insertion report when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two edges into schema 'follows' in graphset 'lcc' and prints error code

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let proInfo: ULTIPA.Property[] = [];
let pro: ULTIPA.Property = {
  name: "createdOn",
  type: ULTIPA.PropertyType.PROPERTY_TIMESTAMP,
};
proInfo.push(pro);

let edgeInfo1 = new ULTIPA.Edge();
edgeInfo1.uuid = "1";
edgeInfo1.from = "U001";
edgeInfo1.to = "U002";
edgeInfo1.set("createdOn", 1714953600);
let edge1: ULTIPA.Edge[] = [];
edge1.push(edgeInfo1);

let insert1 = await conn.insertEdgesBatchBySchema(
  { dbType: ULTIPA.DBType.DBEDGE, name: "follows", properties: proInfo },
  edge1,
  insertRequestConfig
);
console.log(insert1.status.code_desc);

let edgeInfo2 = new ULTIPA.Edge();
edgeInfo2.uuid = "2";
edgeInfo2.from = "U002";
edgeInfo2.to = "U001";
edgeInfo2.set("createdOn", 1715126400);
let edge2: ULTIPA.Edge[] = [];
edge2.push(edgeInfo2);

let insert2 = await conn.insertEdgesBatchBySchema(
  { dbType: ULTIPA.DBType.DBEDGE, name: "follows", properties: proInfo },
  edge2,
  insertRequestConfig
);
console.log(insert2.status.code_desc);

Output
SUCCESS
SUCCESS

insertNodesBatchAuto()

Inserts new nodes of one or multiple schemas to the current graph through gRPC. The properties within node values must be consistent with those defined in the corresponding schema structure.

Parameters:

• Node[]: The list of Node objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. Response.InsertNodesReply contains the insertion report when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two nodes into schema 'user' and one node into schema `product` in graphset 'lcc' and prints error code

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let newNodes: ULTIPA.Node[] = [];
let nodeInfo1 = new ULTIPA.Node();
nodeInfo1.schema = "user";
nodeInfo1.id = "U001";
nodeInfo1.uuid = "1";
nodeInfo1.set("name", "Alice");
nodeInfo1.set("age", 18);
nodeInfo1.set("score", "65.32");
nodeInfo1.set("birthday", "1993-5-4");
nodeInfo1.set("location", `POINT(23.63 104)`);
nodeInfo1.set("profile", "abc");
nodeInfo1.set("interests", ["tennis", "violin"]);
nodeInfo1.set("permissionCodes", [2004, 3025, 1025]);

let nodeInfo2 = new ULTIPA.Node();
nodeInfo2.schema = "user";
nodeInfo2.id = "U002";
nodeInfo2.uuid = "2";
nodeInfo2.set("name", "Bob");
nodeInfo2.set("age", null);
nodeInfo2.set("score", null);
nodeInfo2.set("birthday", null);
nodeInfo2.set("location", null);
nodeInfo2.set("profile", null);
nodeInfo2.set("interests", null);
nodeInfo2.set("permissionCodes", null);

let nodeInfo3 = new ULTIPA.Node();
nodeInfo3.schema = "product";
nodeInfo3.id = "P001";
nodeInfo3.uuid = "3";
nodeInfo3.set("name", "Wireless Earbud");
nodeInfo3.set("price", 93.2);

newNodes.push(nodeInfo1, nodeInfo2, nodeInfo3);
let nodeInsert = await conn.insertNodesBatchAuto(
  newNodes,
  insertRequestConfig
);
console.log(nodeInsert.status.code_desc);
console.log("Node uuids: ", nodeInsert.data.uuids);

Output
SUCCESS
Node uuids:  [ '1', '2', '3' ]

insertEdgesBatchAuto()

Inserts new edges of one or multiple schemas to the current graph through gRPC. The properties within edge values must be consistent with those defined in the corresponding schema structure.

Parameters:

• Edge[]: The list of Edge objects to be inserted.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. Response.InsertEdgesReply contains the insertion report when InsertRequestConfig.slient is set to false.

TypeScript
// Inserts two edges into schema 'follows' and one edge into schema 'purchased' in graphset 'lcc' and prints error code

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let newEdges: ULTIPA.Edge[] = [];
let edgeInfo1 = new ULTIPA.Edge();
edgeInfo1.schema = "follows";
edgeInfo1.uuid = "1";
edgeInfo1.from = "U001";
edgeInfo1.to = "U002";
edgeInfo1.set("createdOn", 1714953600);

let edgeInfo2 = new ULTIPA.Edge();
edgeInfo2.schema = "follows";
edgeInfo2.uuid = "2";
edgeInfo2.from = "U002";
edgeInfo2.to = "U001";
edgeInfo2.set("createdOn", 1715126400);

let edgeInfo3 = new ULTIPA.Edge();
edgeInfo3.schema = "purchased";
edgeInfo3.uuid = "3";
edgeInfo3.from = "U002";
edgeInfo3.to = "P001";
edgeInfo3.set("qty", 1);

newEdges.push(edgeInfo1, edgeInfo2, edgeInfo3);
let edgeInsert = await conn.insertEdgesBatchAuto(
  newEdges,
  insertRequestConfig
);
console.log(edgeInsert.status.code_desc);
console.log("Edge uuids: ", edgeInsert.data.uuids);

Output
SUCCESS
Edge uuids:  [ '1', '2', '3' ]

Deletion

deleteNodes()

Deletes nodes that meet the given conditions from the current graph. It's important to note that deleting a node leads to the removal of all edges that are connected to it.

Parameters:

• string: The filtering condition to specify the nodes to delete.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. The Response object contains an alias nodes that holds all the deleted nodes when InsertRequestConfig.slient is set to false.

TypeScript
// Deletes one @user nodes whose name is 'Alice' from graphset 'lcc' and prints error code
// All edges attached to the deleted node are deleted as well

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let resp = await conn.deleteNodes(
  "{@user.name == 'Alice'}",
  insertRequestConfig
);
console.log(resp.status.code_desc);

Output
SUCCESS

deleteEdges()

Deletes edges that meet the given conditions from the current graph.

Parameters:

• string: The filtering condition to specify the edges to delete.
• InsertRequestConfig (Optional): Configuration settings for the request.

Returns:

• Response: Result of the request. The Response object contains an alias edges that holds all the deleted edges when InsertRequestConfig.slient is set to false.

TypeScript
// Deletes all @purchased edges from graphset 'lcc' and prints error code

let insertRequestConfig = <RequestType.InsertRequestConfig>{
  insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
  silent: false,
  graphSetName: "lcc",
  useMaster: true,
};

let resp = await conn.deleteEdges("{@purchased}", insertRequestConfig);
console.log(resp.status.code_desc);

Output
SUCCESS

Full Example

TypeScript
import { ConnectionPool, ULTIPA } from "@ultipa-graph/ultipa-node-sdk";
import { GraphExra } from "@ultipa-graph/ultipa-node-sdk/dist/connection/extra/graph.extra";
import { getEdgesPrintInfo } from "@ultipa-graph/ultipa-node-sdk/dist/printers/edge";
import { RequestType } from "@ultipa-graph/ultipa-node-sdk/dist/types";
import { ListFormat } from "typescript";

let sdkUsage = async () => {
  // Connection configurations
  //URI example: hosts="mqj4zouys.us-east-1.cloud.ultipa.com:60010"
  let hosts = [
    "192.168.1.85:60061",
    "192.168.1.86:60061",
    "192.168.1.87:60061",
  ];
  let username = "***";
  let password = "***";
  let connPool = new ConnectionPool(hosts, username, password);

  // Establishes connection to the database
  let conn = await connPool.getActive();
  let isSuccess = await conn.test();
  console.log(isSuccess);

  // Insert Request configurations
  let insertRequestConfig = <RequestType.InsertRequestConfig>{
    insertType: ULTIPA.InsertType.INSERT_TYPE_NORMAL,
    silent: false,
    graphSetName: "lcc",
    useMaster: true,
  };

  // Inserts two nodes into schema 'user' and one node into schema `product` in graphset 'lcc', prints error code and the insert reply

  let newNodes: ULTIPA.Node[] = [];
  let nodeInfo1 = new ULTIPA.Node();
  nodeInfo1.schema = "user";
  nodeInfo1.id = "U001";
  nodeInfo1.uuid = "1";
  nodeInfo1.set("name", "Alice");
  nodeInfo1.set("age", 18);
  nodeInfo1.set("score", "65.32");
  nodeInfo1.set("birthday", "1993-5-4");
  nodeInfo1.set("location", `POINT(23.63 104)`);
  nodeInfo1.set("profile", "abc");
  nodeInfo1.set("interests", ["tennis", "violin"]);
  nodeInfo1.set("permissionCodes", [2004, 3025, 1025]);

  let nodeInfo2 = new ULTIPA.Node();
  nodeInfo2.schema = "user";
  nodeInfo2.id = "U002";
  nodeInfo2.uuid = "2";
  nodeInfo2.set("name", "Bob");
  nodeInfo2.set("age", null);
  nodeInfo2.set("score", null);
  nodeInfo2.set("birthday", null);
  nodeInfo2.set("location", null);
  nodeInfo2.set("profile", null);
  nodeInfo2.set("interests", null);
  nodeInfo2.set("permissionCodes", null);

  let nodeInfo3 = new ULTIPA.Node();
  nodeInfo3.schema = "product";
  nodeInfo3.id = "P001";
  nodeInfo3.uuid = "3";
  nodeInfo3.set("name", "Wireless Earbud");
  nodeInfo3.set("price", 93.2);

  newNodes.push(nodeInfo1, nodeInfo2, nodeInfo3);
  let nodeInsert = await conn.insertNodesBatchAuto(
    newNodes,
    insertRequestConfig
  );
  console.log(nodeInsert.status.code_desc);
  console.log("Node uuids: ", nodeInsert.data.uuids);

  // Inserts two edges into schema 'follows' and one edge into schema 'purchased' in graphset 'lcc', prints error code and the insert reply

  let newEdges: ULTIPA.Edge[] = [];
  let edgeInfo1 = new ULTIPA.Edge();
  edgeInfo1.schema = "follows";
  edgeInfo1.uuid = "1";
  edgeInfo1.from = "U001";
  edgeInfo1.to = "U002";
  edgeInfo1.set("createdOn", 1714953600);

  let edgeInfo2 = new ULTIPA.Edge();
  edgeInfo2.schema = "follows";
  edgeInfo2.uuid = "2";
  edgeInfo2.from = "U002";
  edgeInfo2.to = "U001";
  edgeInfo2.set("createdOn", 1715126400);

  let edgeInfo3 = new ULTIPA.Edge();
  edgeInfo3.schema = "purchased";
  edgeInfo3.uuid = "3";
  edgeInfo3.from = "U002";
  edgeInfo3.to = "P001";
  edgeInfo3.set("qty", 1);

  newEdges.push(edgeInfo1, edgeInfo2, edgeInfo3);
  let edgeInsert = await conn.insertEdgesBatchAuto(
    newEdges,
    insertRequestConfig
  );
  console.log(edgeInsert.status.code_desc);
  console.log("Edge uuids: ", edgeInsert.data.uuids);
};

sdkUsage().then(console.log).catch(console.log);
